LED Walls vs Projection for Events
How LED video walls and projection systems compare for concerts, festivals, and live events — and when each technology is the right choice. The differences in brightness, setup, durability, and cost determine which is right for your production.
Brightness & Ambient Light
This is the most significant difference. LED walls generate their own light, producing 5,000–7,000+ nits for outdoor panels. Projection reflects light off a screen surface, typically producing 5,000–30,000 lumens depending on the projector. In daylight or high-ambient-light environments, LED walls remain clearly visible while projection washes out. For indoor events with controlled lighting, both technologies perform well. For outdoor daytime events, LED is the only practical option.
Image Quality & Resolution
LED wall resolution depends on pixel pitch — smaller pitch means higher resolution at closer viewing distances. A 2.9mm LED wall delivers sharp imagery for audiences within 20–30 feet. Projection can deliver very high resolution (4K projectors are common) but image quality degrades with ambient light, screen surface quality, and throw distance. For close-viewing applications in controlled environments, high-resolution projection can match or exceed LED. For most live event applications, LED provides more consistent image quality.
Setup Time & Complexity

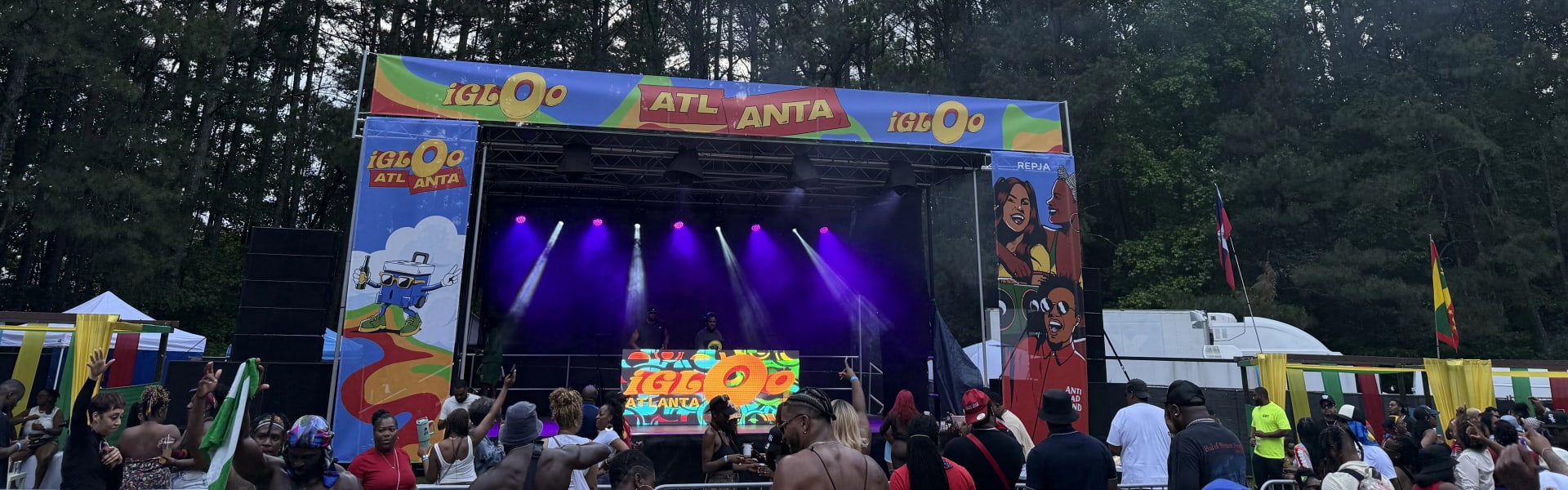

Projection requires projector placement, lens alignment, screen rigging or ground support, and signal routing from the source to the projector position. Throw distance requirements determine projector placement, which may conflict with audience sightlines or require elevated positions. LED walls are modular — panels connect together to form any size screen, mounted on ground-stacked frames or flown from truss. LED walls can be built in the footprint of the stage, while projection requires clear throw space.
Durability & Weather Resistance
Outdoor-rated LED panels (IP65+) operate in rain and direct sun. Projection screens can be affected by wind (especially soft screens), and projectors require weather protection. For outdoor festivals and concerts where weather exposure is a factor, LED walls are more robust. Indoor events face no weather concerns, making both technologies equally viable from a durability standpoint.
Cost Comparison
LED walls generally cost more to rent than projection systems for equivalent screen sizes. However, the cost gap narrows for outdoor events where high-brightness projection requires expensive high-lumen projectors and the image quality still falls short of LED in daylight. For indoor events with controlled lighting, projection can deliver excellent results at lower cost. For touring productions, LED walls are more common because they’re self-contained and don’t require venue-specific projector placement.
Best Use Cases for Each
LED walls are the standard for: outdoor concerts and festivals, touring productions, IMAG (image magnification) screens, and any environment with ambient light. Projection works well for: indoor corporate events, theatrical productions, scenic projection onto irregular surfaces (buildings, scrims), and applications where extreme image size is needed at lower cost. Many productions combine both — LED walls for primary IMAG and projection for scenic or background imagery.
Need Video for Your Event?
We help you select the right video technology for your venue, budget, and production requirements.
Discuss Your ProductionLED vs Projection FAQ
Common questions about LED walls and projection for events.
Projection is challenging outdoors. Even high-lumen projectors (20,000+ lumens) wash out in direct sunlight. Outdoor projection works best at night events with minimal ambient light. For daytime outdoor events, LED walls are the standard because they generate their own light and remain visible in any lighting condition.
