Stageline Mobile Stage Rental

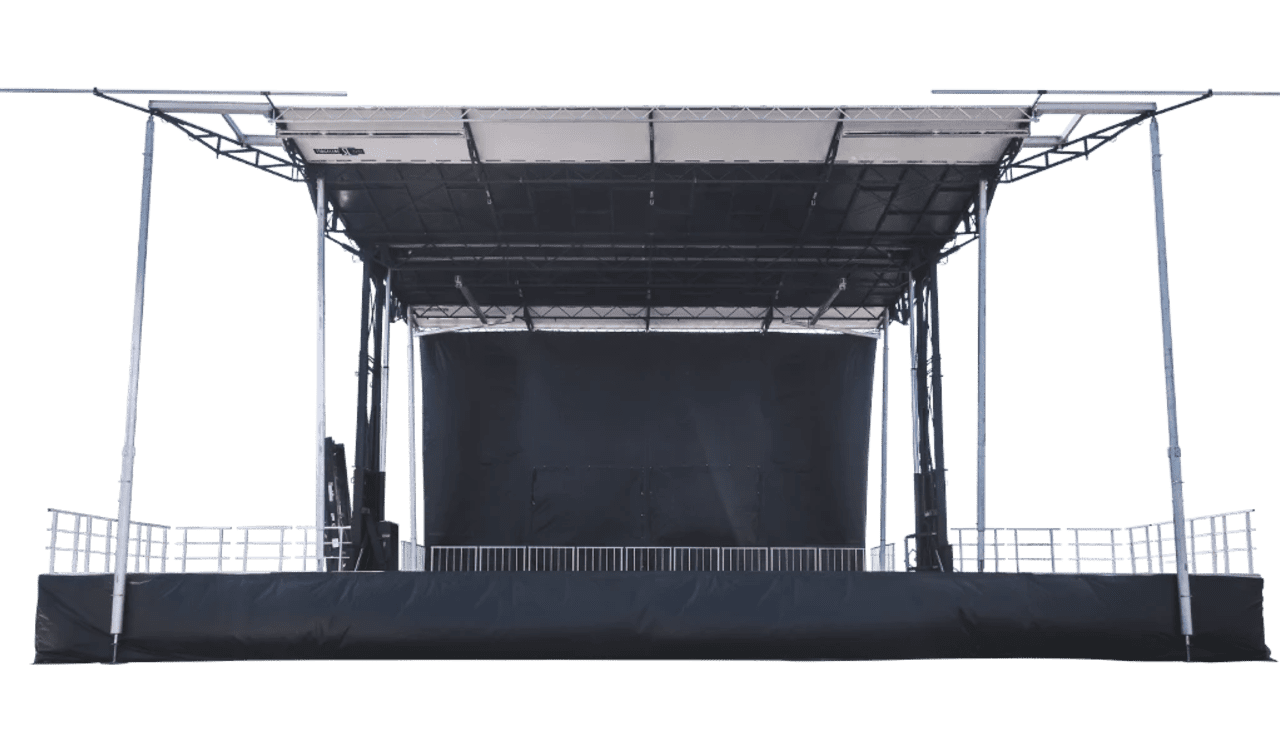

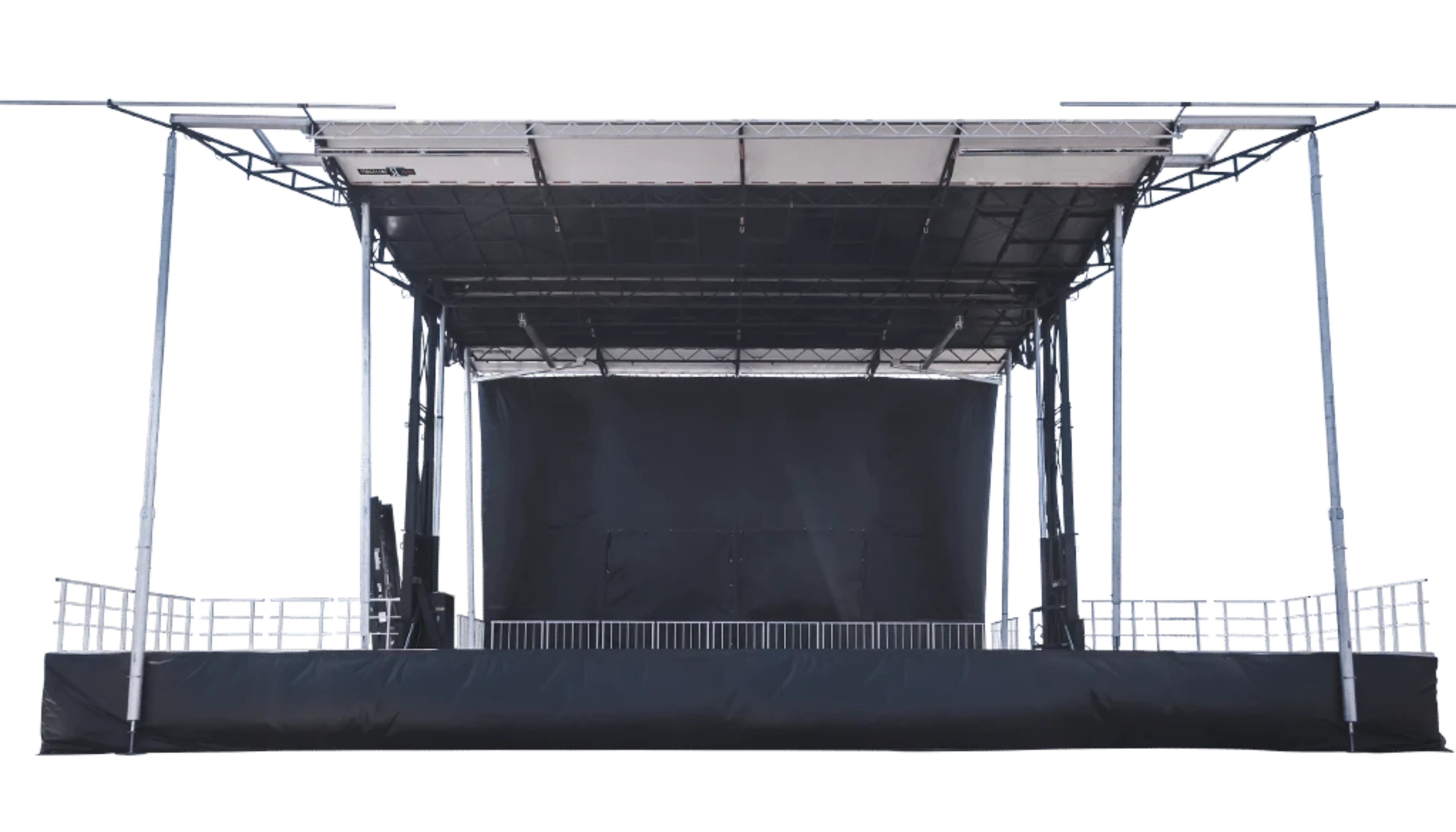

Stageline SL320 Mobile Stage
40' x 40' deck · 26,000 lbs roof · 4-5 hours setup
Technical Specifications
Stageline SL320 engineering specs — 40' x 40' deck · 26,000 lbs roof · 4-5 hours setup
Specifications are the values listed in Rocket's equipment data for this stage model. Final deck size, rigging capacity, trim height, and wind limits for your event depend on the chosen configuration, load distribution, ground conditions, engineering, and the manufacturer's operating instructions and rigging-point limits, and are confirmed during preproduction.
Key Features
- Efficient setup for a 40' mobile stage
- Full weather protection with covered wings
- Integrated crossover/loading dock
- Heavy-duty motor systems
- Engineering documentation available
How to Choose the Stageline SL320
Consider the Stageline SL320 when your production calls for a 40' x 40' deck (1,600 sq ft) and roughly 46' of trim height, with a 26,000 lbs maximum load-bearing capacity listed in Stageline documentation for the cited generation (documented configuration; confirm Rocket's unit number in preproduction) to plan lighting, audio, and video against. Rocket sizes it for 2,000–10,000 guests — major music festivals, national touring acts, stadium events.
Best-fit event formats
- Major music festivals
- National touring acts
- Stadium events
- Multi-day festivals
- Broadcast productions
- Award show productions
Stageline SL320 planning inputs
- Deck footprint
- 40' x 40' (1,600 sq ft)
- Roof / rigging capacity
- 26,000 lbs — maximum load-bearing capacity listed in Stageline documentation for the cited generation under the documented configuration (all corner posts installed and pinned); it cannot be freely allocated across the roof — the manufacturer's per-rigging-point limits, one-point-at-a-time rule, symmetrical load distribution, and windwall/banner restrictions apply. Confirm Rocket's specific unit number, current engineering documentation, rigging-point limits, and installed options during preproduction
- Trim / roof height
- 46'
- Setup
- 4-5 hours
- Site access
- Confirm ground conditions, gate width, and turning radius for the trailer during preproduction
- Ground & ballast
- Engineered ballast or ground support may be required depending on the model, configuration, and site; confirmed during preproduction
Wind & weather planning
Wind rating listed for the model: 75 mph. Wind ratings depend on model, configuration, deployment state, and operating procedures; the applicable rating is confirmed per deployment.
Good to know
- This is the largest mobile deck Rocket runs (40' x 40'); larger footprints move to a scaffold/ground-support build.
- Audience figures (2,000-10,000) are Rocket planning guidance for sizing, not a venue occupancy rating.
Stageline SL320 vs the stages next to it
The stages a buyer usually weighs against the Stageline SL320. See the full mobile-stage fleet comparison for all six models.
| Model | Deck | Roof / riggingconfig-dependent | Setup | AudienceRocket guidance |
|---|---|---|---|---|
| Stageline SL320This stageStageline | 40' x 40'1,600 sq ft | 26,000 lbsStageline doc, cited generation — confirm unit | 4-5 hours | 2,000-10,000 |
| Stageline SL260smallerStageline | 32' x 24'768 sq ft | 18,000 lbsprovisional — official sources conflict | 3-4 hours | 2,000-5,000 |
When to size down
Size down to the Stageline SL260 for tighter sites or faster turns — 32' x 24' in a 3-4 hours setup.
The Stageline SL320 is part of Rocket Productions' owned mobile-stage fleet, deployed with an in-house crew across metro Atlanta and the Southeast. Ask for recent Stageline SL320 references relevant to your event type when you request a quote.
Specifications are the values listed in Rocket's equipment data for this stage model. Final deck size, rigging capacity, trim height, and wind limits for your event depend on the chosen configuration, load distribution, ground conditions, engineering, and the manufacturer's operating instructions and rigging-point limits, and are confirmed during preproduction.
Stageline SL320
The Perfect Stage For
With 40' x 40' deck · 26,000 lbs roof · 4-5 hours setup, the Stageline SL320 fits major music festivals and national touring acts, and the productions below.

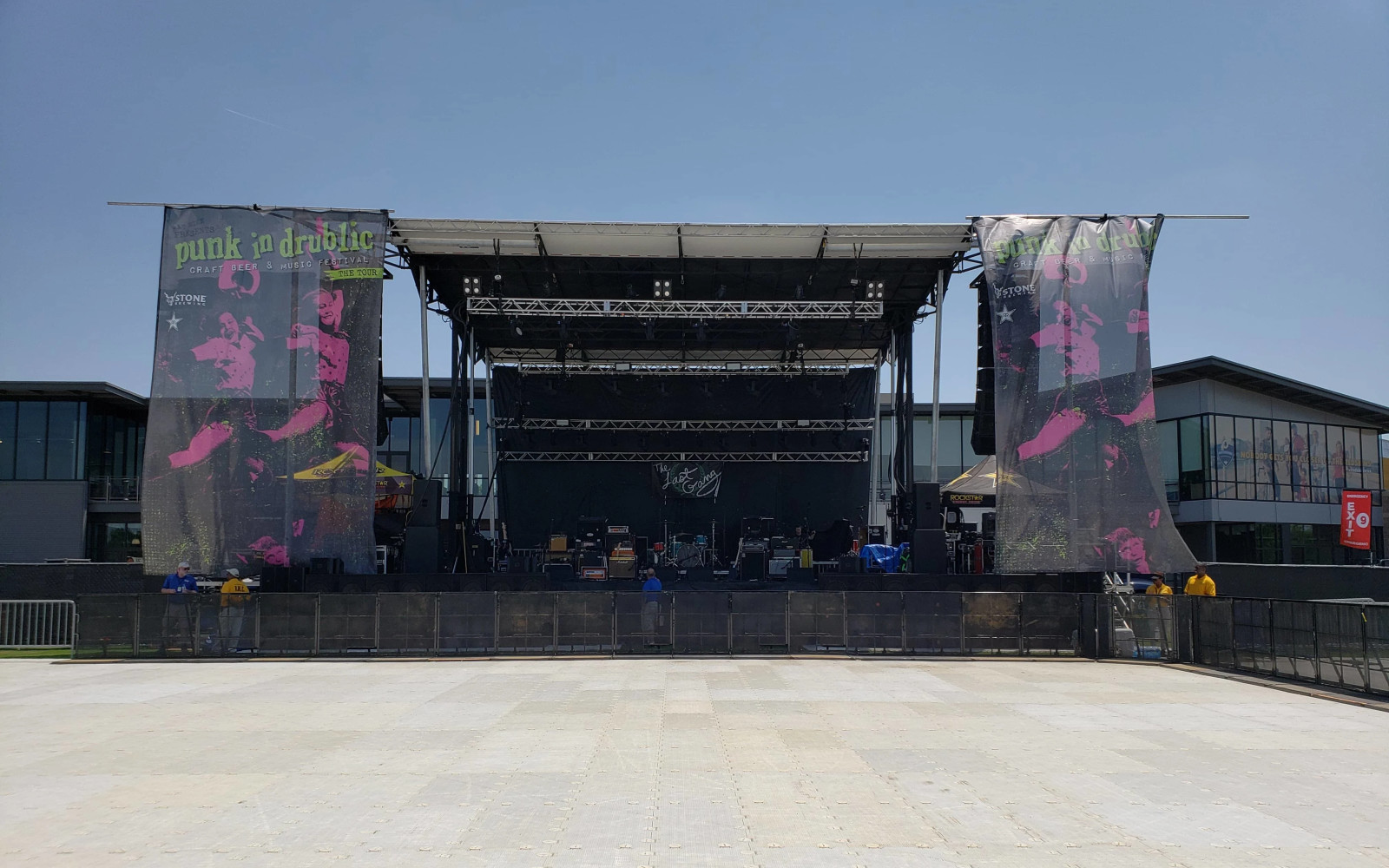

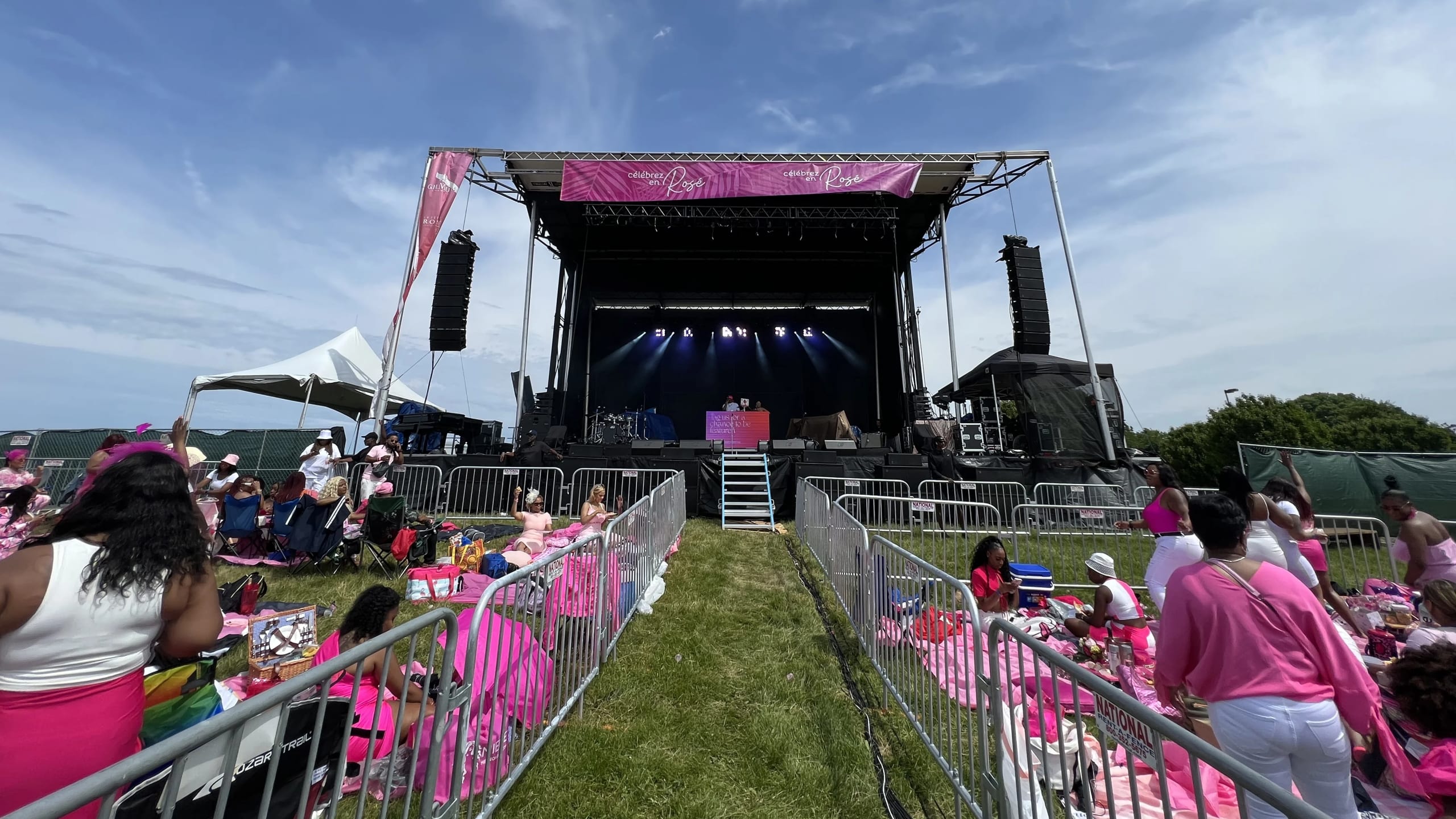

Stageline SL320 at Real Events Across the Southeast
The Stageline SL320 on site for audiences of 2,000-10,000 — festivals, concerts, and corporate productions delivered turnkey by our in-house crew.
Full-Service Production
Add Production to Your Stage
Bundle your Stageline SL320 with turnkey production — audio, lighting, video, and rigging delivered by one team, one truck, one point of contact.
Stageline SL320 Mobile Stage FAQ
Everything you need to know about the Stageline SL320 mobile stage.
The Stageline SL320 sets up in 4-5 hours. Delivery, setup, and teardown can be included in the quoted production package.
40-Foot Mobile Stage
A 40′ × 40′ Stage. Ready for Your Event.
26,000 lbs of rigging capacity. 75 mph wind rating. Setup in about 4 hours. Get a production-ready SL320 proposal with transparent pricing within 48 hours. Free consultation included.
Full production support • Fast quote turnaround • Serving Atlanta and the Southeast
